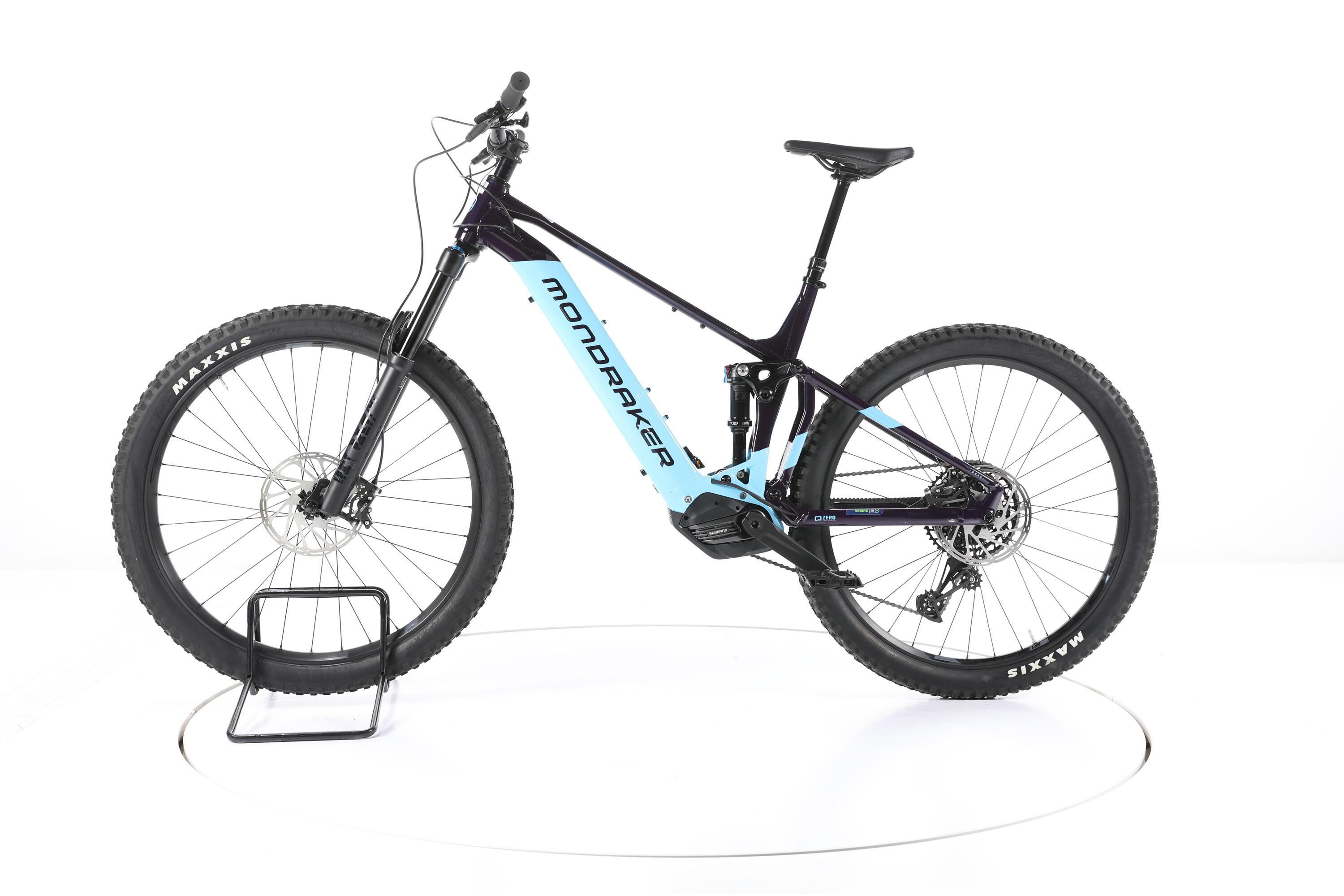

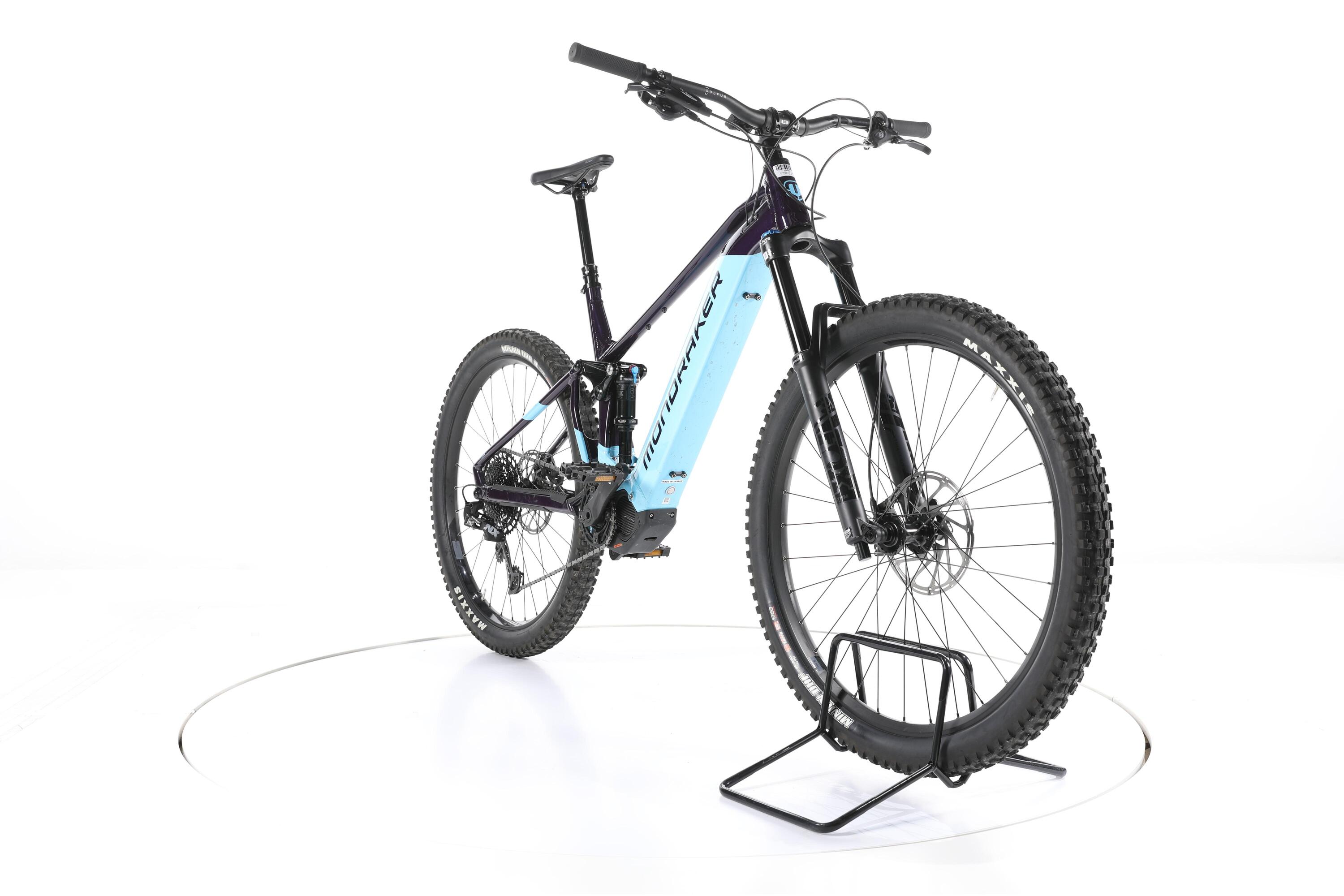

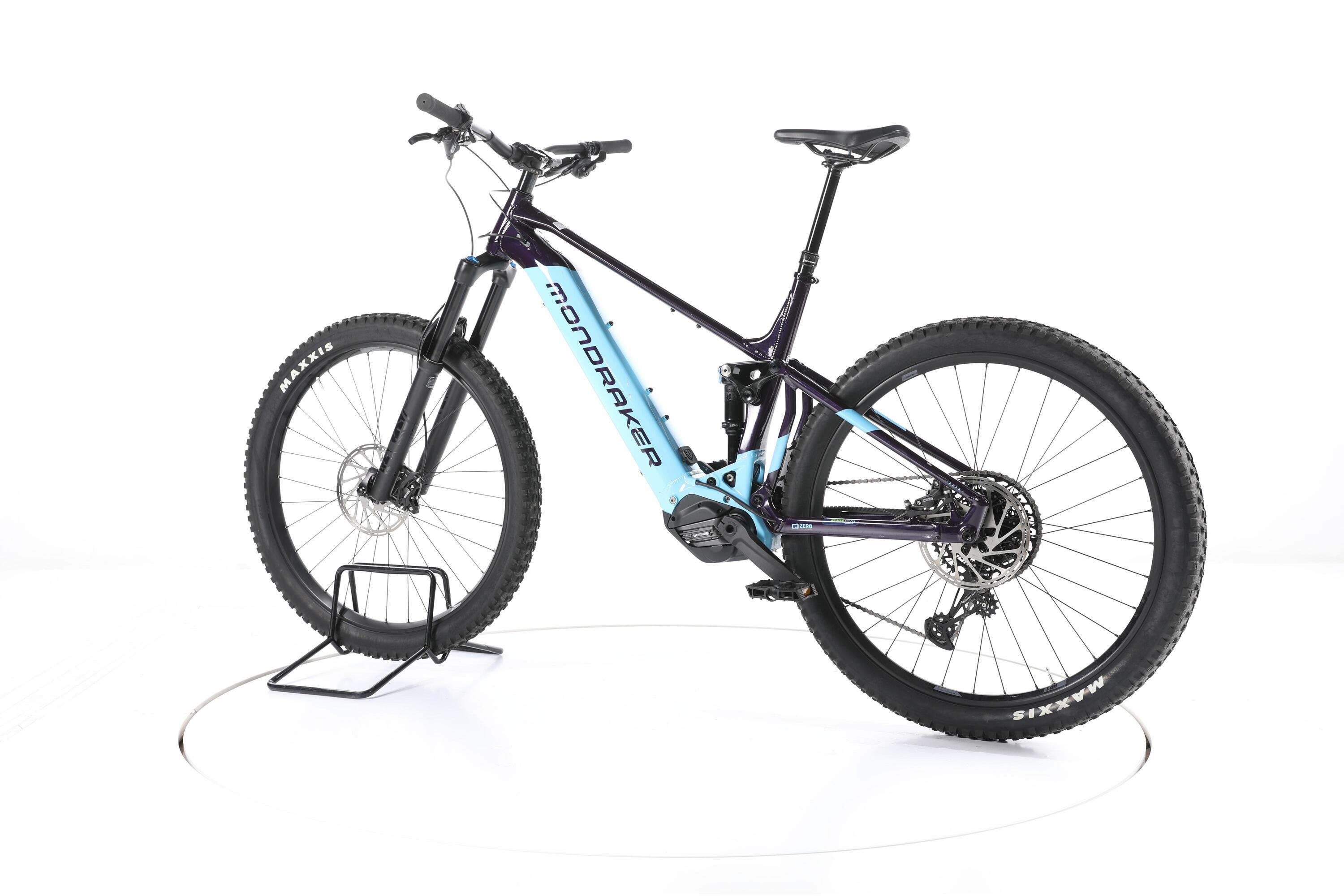

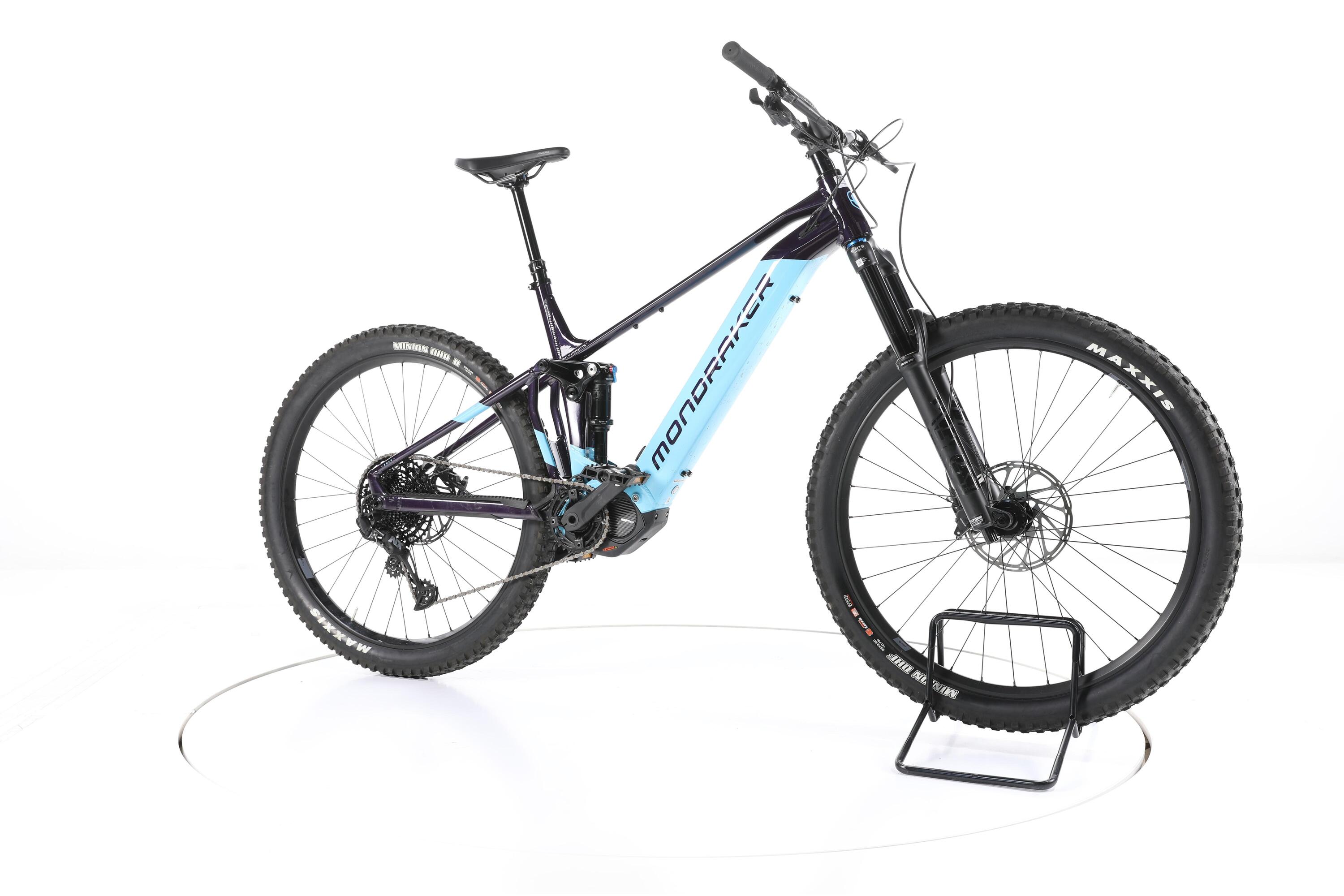

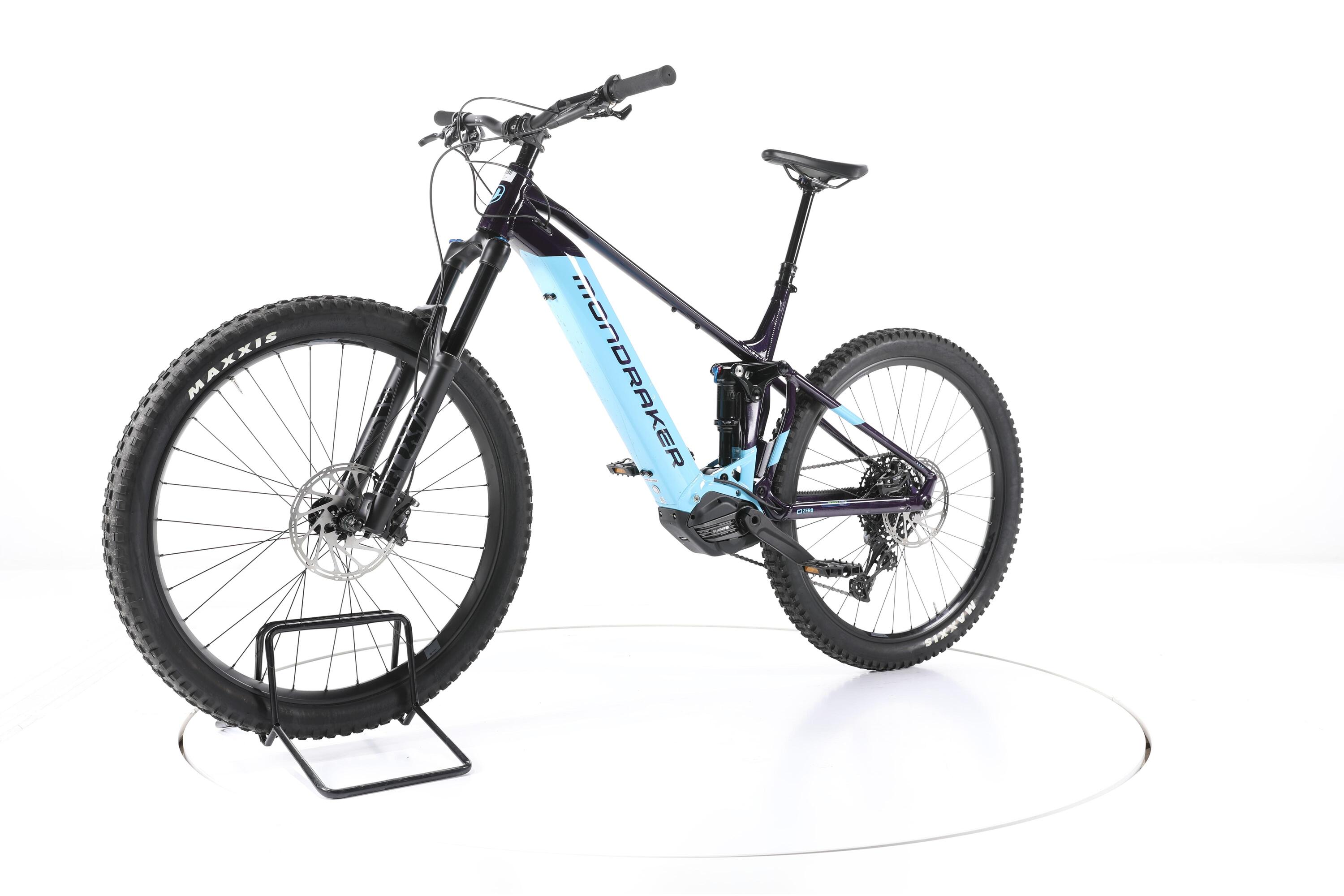

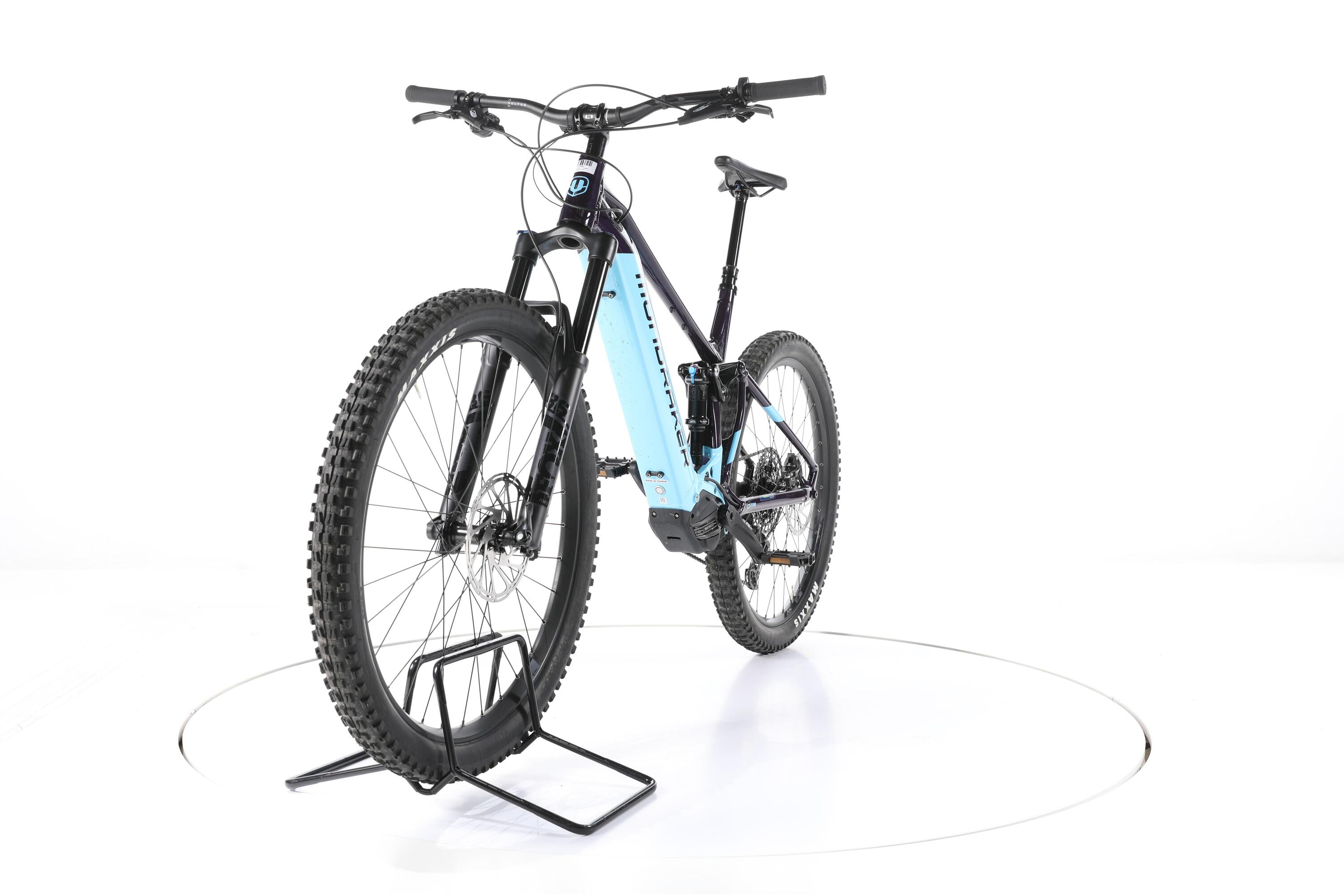

Refurbished - Mondraker DUSK R Fully E-Bike 2023 - Very Good Condition
Condition
Used goods - Very Good Condition.
All our Premium Refurbished electric bikes have been checked by our mechanics, repaired if necessary, and are fully functional.
Mileage: 584 km
PRODUCT DETAILS
Battery
Simplo TPS
Battery Capacity
630 Wh
Battery Position
Integrated Battery
Rear Brake
Sram G2 R, 4-Kolben Bremssattel, einteilige 6-Loch Centerline 2mm Bremsscheibe, organische Bremsbeläge mit Rückplatte aus Stahl
Front Brake
Sram G2 R, 4-Kolben Bremssattel, einteilige 6-Loch Centerline 2mm Bremsscheibe, organische Bremsbeläge mit Rückplatte aus Stahl
Brake Lever
Sram G2 R, Griffweite werkzeuglos einstellbar
Brake disc
200 mm, 200 mm
Damper
Fox Float DPS LV EVOL Performance, 25x65mm. Einstellungen: Druckstufe über dreistufigen Hebel, Low-Speed Zugstufe, Luftdruck. Obere Befestigung: Trunnion, untere Lager: 25x1mm
Display
Shimano Steps EP8
Entry Level
High
Color
blue
Rear Rim
MDK-HP1 29, 3mm Innenbreite, Tubeless Ready, 32 Speichen
Front Rim
MDK-HP1 29, 3mm Innenbreite, Tubeless Ready, 32 Speichen
Fork
Fox 36 29 Float FIT GRIP EVOL Rhythm, 160 mm, konifiziertes Steuerrohr, 15x11mm Achse, Offset 44mm. Einstellungen: Sweep Adjust Druckstufe, Low-Speed Zugstufe, Luftdruck
Gears
12 Gears
Weight
52 lb (23,6 kg)
Handles
Onoff Diamond, lock-on einfach, 135mm
Note
For new bikes, the manufacturer reserves the right to install equivalent components due to supply shortages. For refurbished bikes, all replaced components are visible in the photos.
Engine Speed
25 km/h
Cassette
Sram PG-121, 11-5Z, 12-Gang
Crankset
Shimano Steps EP801 e-Bike, 165mm
Wheel size
29"
Handlebar
Onoff Sulfur 1., doppelt konifiziertes 661 Aluminium, Erhöhung: 2mm, Breite: 78mm, 9º horizontale Kröpfung/Backsweep, 5º vertikale Kröpfung/Upsweep, 31,8mm Lenkerdurchmesser
Brand
Mondraker
Model year
2023
Motor
Shimano EP8 (EP800)
Motor torque
85 Nm
Motor power
250
Motor brand
Shimano
Rear hub
Formula EHL148 Boost 12x148mm, gedichtete Lager, IS 6-Loch
Front hub
Formula DC711, Boost 15x11mm, gedichtete Lager, IS 6-Loch
Frame
Dusk 661 Aluminium Stealth Evo, für e-Bike optimiertes Zero Suspension System, 15mm Federweg, Forward Geometry, integrierte und nicht herausnehmbare Batterie, Boost 12x148mm Hinterachse, konifiziertes Steuerrohr, einteilige Monoblock Wippe, HHG innen verlegte Leitungen und Züge, gedichtete "MAX Capacity" Lager, extra große 17mm Achsen, im Ausfallende integrierter Geschwindigkeitssensor. *Zusätzliche Batterie (extern) optional erhältlich
Frame size
XL
Saddle
FIZIK Terra Aidon X5 145mm
Seatpost
Onoff Pija versenkbar, interne Leitungsverlegung, Durchmesser 31,6mm, Größe S: 387x125mm, Größe M: 425x15mm, Größe L/XL: 465x17mm
Gear shift lever
Sram Trigger NX Eagle, 12-Gang, X-Actuation 1:1, Single Click
Rear derailleur
SRAM NX Eagle, Roller Bearing Clutch Typ 3, Cage Lock, langer Käfig, 1x12-Gang, X-Actuation 1:1
Push-assist
up to 6 km/h
Spokes
CN rund, Edelstahl
Stem
Onoff Sulfur FG 3mm º, geschmiedetes 661 Aluminium, 31,8mm Lenkerdurchmesser
Reference
229483
VISIBLE SIGNS OF WEAR
Fork, Crankset, Display, Brake lever, Frame (not visible), Frame (visible)
REPLACED COMPONENTS
Pedals
AVANTAGES DU PRODUIT
2-year warranty on the battery and motor
RÉNOVATION PREMIUM REBIKE
Our goal is to achieve a unique quality in the refurbishment of electric bikes. Digital systems, professional mechanics, and a lot of passion ensure that your next Rebike is as perfect as new.
A careful selection
- Verified origin
- Exclusively “young pre-owned” bikes (leasing returns, returns from our own rental stations, or our E-Bike subscription)
- No private e-bikes
- Professional cleaning, inspection & evaluation
- Optical & technical inspection
- Transparent condition description & assessment
- Exchange, repair & quality check
- Mechanical overhaul & repair
- Replacement of wear parts
- Quality control and test ride
- Professional battery & motor check
- Technical inspection
- Digital inspection protocol & software update
- 2-year warranty on the battery and motor
